current location:Home>Products>Manual Positioners>Rotary Stages

PRS200 series precision rotary stages

    1.Precision axis design.

    2.Scale markings every degree are engraved on the circumference of the stage for direct reading. Vernier reading is available for some model types.

    3.Some modelsallow both coarse fine adjustment of the rotation.

    4.Standard threaded holes on both top and bottom of the stages allow secure mounting to optical tables, or additional stages for multi-axes translation.

  • description
  • parameters

PRS200 series precision rotary stages



1.Precision axis design.

2.Scale markings every degree are engraved on the circumference of the stage for direct reading. Vernier reading is available for some model types.

3.Some modelsallow both coarse fine adjustment of the rotation.

4.Standard threaded holes on both top and bottom of the stages allow secure mounting to optical tables, or additional stages for multi-axes translation.



Related Products

     COMBINATED STAGES




Model

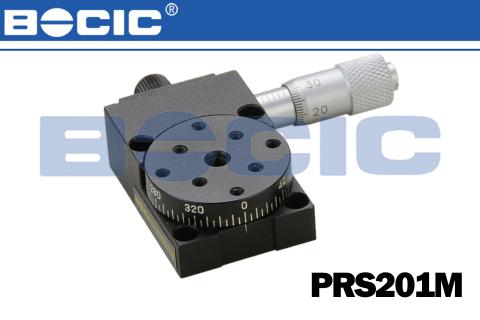

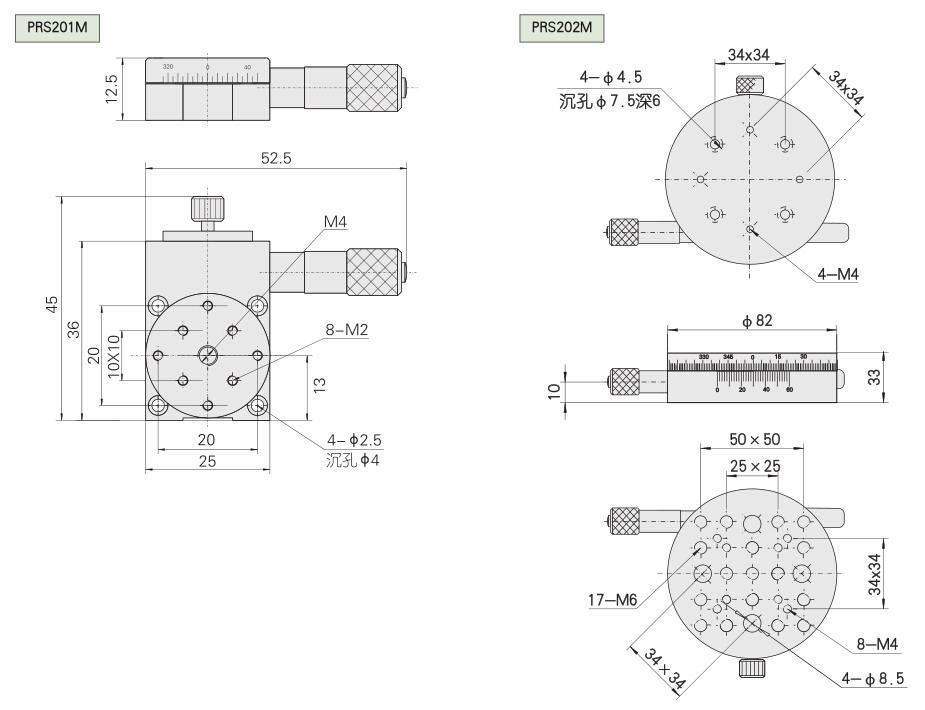

PRS201

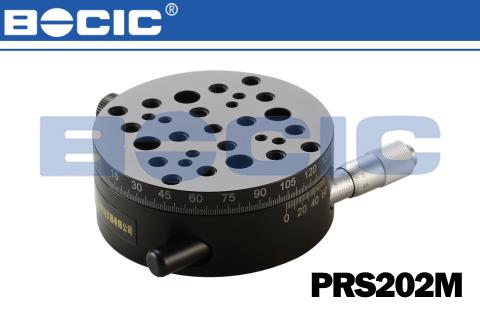

PRS202M

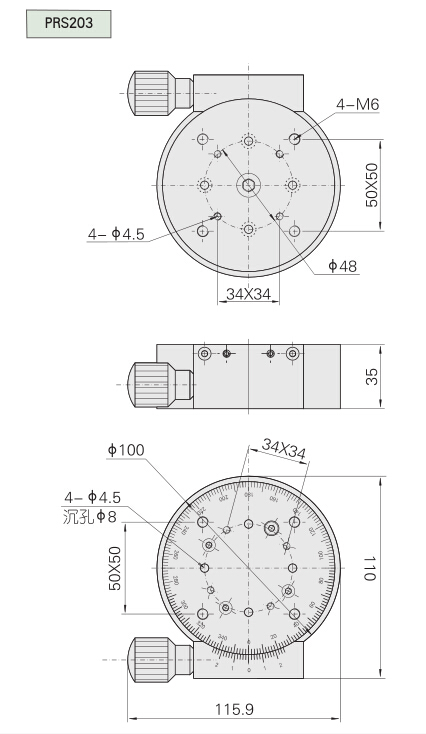

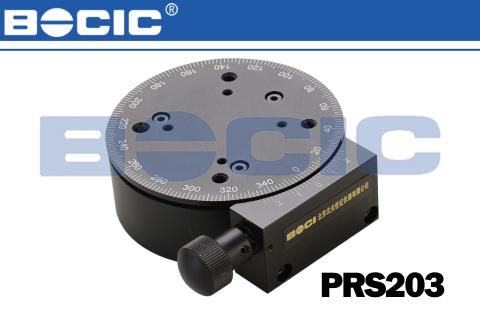

PRS203

Table sizemm

φ25

φ82

φ100

Driving

Micrometer head

Micrometer head

Worm and worm gear

Reading

direct reading

vernier reading

direct reading

Resolution

0.009o

0.002o

0.017o

Coarse adjustment

360o

360o

-

Fine adjustment

±6o

±10o

360o

Graduation

5o

1o

1o

Minimum reading

-

2

2

Loading capacity(kg)

2

5

15

Weightkg

0.035

0.5

0.85
