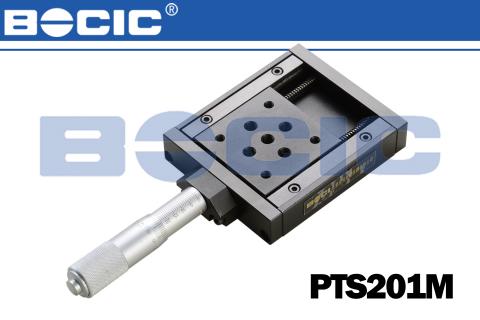

PTS200 series precision postitioning stages
1.Actuated with V-shapedguide andlinear roller.
2.Driven with micrometer head.
3.Micrometers are located at the middle.

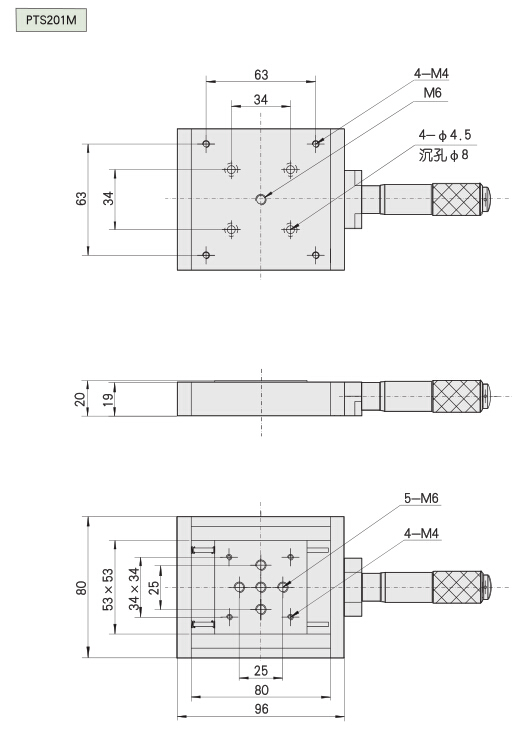

4.Standard threaded holes on both top and
bottom of the stages allow secure mounting to optical tables, or additional
stages for multi-axes translation.
- description
- parameters
|
Model |
PTS201M |
|
Table size （mm） |
53×53 |
|
Travel （mm） |
25 |
|
Driving |
Micrometer head |
|
Graduation（mm） |
0.01 |
|
Resolution（mm） |
0.002 |
|
Precision（mm） |
0.005 |
|
Loading capacity (kg) |
5 |
|
Weight （kg） |
0.50 |
