TMS400 series multi-axis positioning stages
1.The stages allow for 3-axis adjustments.
2.Actuated with dovetail slide guides.
3.Driven withfine teeth screw rods.
4.Resetspringeliminates return backlash.
5.TMS400 series stages can
be combined with VTS seriesstages to provide four-axisadjustment
capability.

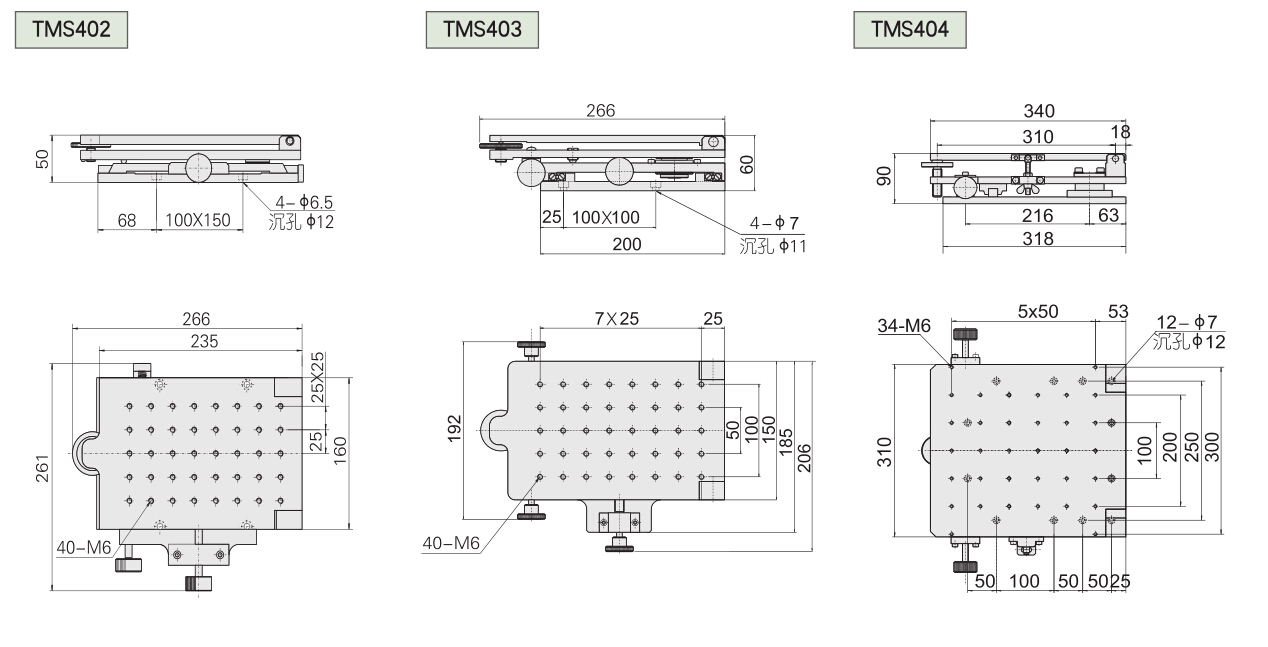

- description
- parameters
|

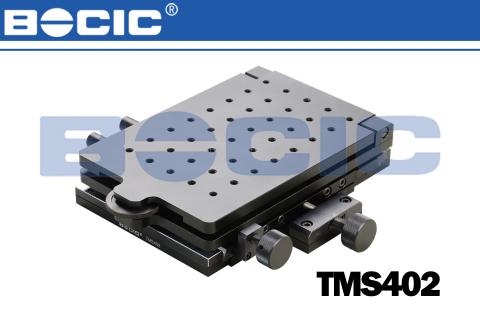

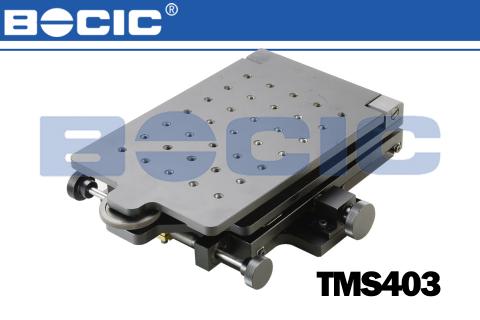

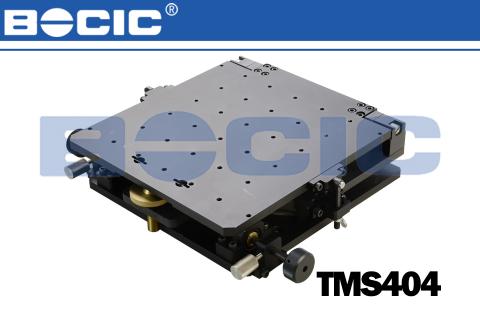

Model |
TMS402 |
TMS403 |
TMS404 |
|
Travel（mm） |
Ty：±10 |
- |
|
|
Adjusting range of translation |
θz：±2.5° |
θz：±10° |
θz：±6° |
|
Adjusting range of pitch |
θy：3° |
θy：±3° |
|
|
Loading capacity |
19 |
40 |
80 |
|
Weight（kg） |
5.9 |
6.5 |
15 |
