current location:Home>Products>Optics Mounts Series>Fiber Optomechanics

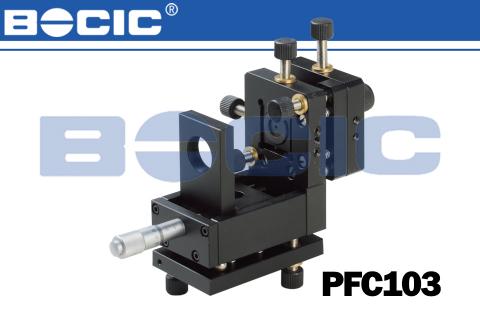

PFC103 precision fiber coupler

    1. Increase a micro lens mount on the basis of PFC101 fiber coupler, convenient to use a microscope objective to couple both beam and optical fiber

    2. The guide rail adopts precision linear ball, stable movement, high precision

    3. Driving by micrometer head, Continuously measure the distance  between the objective and pinhole

    4. Biaxial inclination adjustment function

    5. There are connecting holes on the lower part, convenient to connect it with the other stages or compose multi dimensional stage.

    6. If increase pinhole ,Can change to the spatial filter

  • description
  • parameters

PFC103 precision fiber coupler



1. Increase a micro lens mount on the basis of PFC101 fiber coupler, convenient to use a microscope objective to couple both beam and optical fiber

2. The guide rail adopts precision linear ball, stable movement, high precision

3. Driving by micrometer head, Continuously measure the distance  between the objective and pinhole

4. Biaxial inclination adjustment function

5. There are connecting holes on the lower part, convenient to connect it with the other stages or compose multi dimensional stage.

6. If increase pinhole ,Can change to the spatial filter



Related Products

        PFA101 Fiber Clamp                          PFA102 Fiber Clamp



Model

PFC103

Applied diametermm

≤φ6.35

Adjusting range of objectivemm

Tx

13

Adjusting range of translationmm

Tx

6

Ty

±2

Tz

±2

Adjusting rang of fiber tilt

θy

±4°

θz

±4°

Adjusting range of tilt

±4°

Weightkg

0.45
