current location：Home>Products>Optics Mounts Series>Optics Mounts

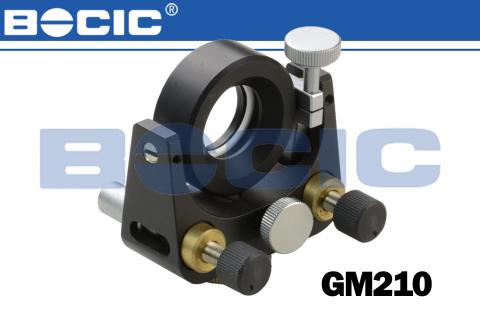

GM210 series gimbal optics mounts

    1. Two axis rotation orthogonal coplanar，it ensures the optical path not to be change.

    2. Coarse adjustment and fine adjustment.

    3. Driving by fine thread screw or micrometer head

    4. Pressing lens by a thread screwing rotation

    5. Had lock hand wheel

  • description
  • parameters

GM210 series gimbal optics mounts




1. Two axis rotation orthogonal coplanar，it ensures the optical path not to be change.

2. Coarse adjustment and fine adjustment.

3. Driving by fine thread screw or micrometer head

4. Pressing lens by a thread screwing rotation

5. Had lock hand wheel



Model

GM211

GM211M

GM211B

GM211BM

GM212

GM212M

A  Applied diameter

Φ25

Φ25.4

Φ30

B

Φ22

Φ22

Φ27

Driving

Fine thread screw

Micrometer head

Fine thread screw

Micrometer head

Fine thread screw

Micrometer head

Coarse adjustment

360°

Fine adjustment

±4°

Weight（kg）

0.36

0.4

0.36

0.4

0.36

0.4
