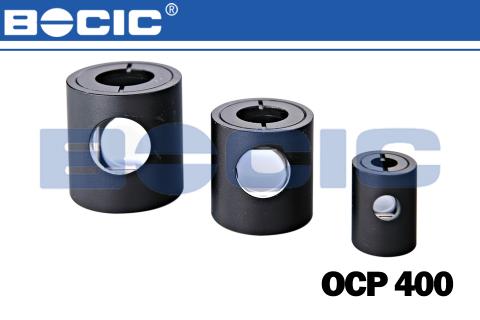

OCP400 series Glan-Taylor prisms
1. Material: a-BBO, Calcite, YVO4
2. Wavelength Range: a-BBO: 220-3000nm; Calcite: 350-2300nm; YVO4: 500-4000nm
3. Extinction Ratio: <5x10-6
4. Surface Quality： 20/10 scratch and dig
5. Beam Deviation: <3 arc minutes
6. Wavefront Distortion: λ/4@632.8nm
7. Damage Threshold: >1J/cm2, 20ns, 20Hz, @1064nm
8. Coating: Single Layer MgF2@1064nm
9. Mount: Black Anodized Aluminium
- description
- parameters
|
Model |
Name |
Clear Apertureφ(MM) |
|
OCP401 |
Glan-Taylor prisms |
5 |
|
OCP402 |
Glan-Taylor prisms |
8 |
|
OCP403 |
Glan-Taylor prisms |
10 |
|
OCP404 |
Glan-Taylor prisms |
12 |
|
OCP405 |
Glan-Taylor prisms |
15 |
|
OCP406 |
Glan-Taylor prisms |
18 |
