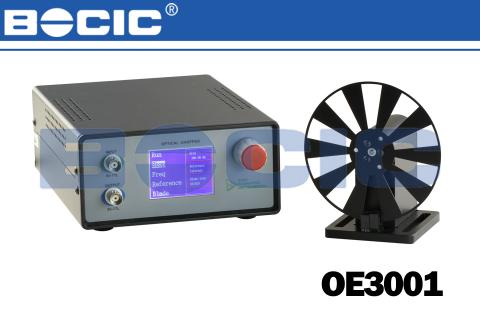

OE3001 optical chopper
-
The OE3001 optical chopper is precision optical equipment that with the PID technology to drive motor, and provides a stable reference output signal. The OE3001 is composed of the main chassis, chopping machines and cable. Where the main chassis is the electronic control system. The chopping machine includes chopper seat and chopper blades and other components, to achieve chopper operation. The main chassis control motor and measure the speed via a line.
- description
- parameters
Specifications
Frequency stability 250ppm/℃（typ.）
Frequency drift <1%
Operating Single Photoelectric encoder
Operating temperature 10-40℃
Frequency display 4-digit
Input & output compatibility
standard TTL/COMS level
Input voltage 0 ~ 5 V
Input high level > 3.6 V
Input low level < 0.4 V
Frequency stability 250ppm/℃（typ.）
Frequency drift <1%
Operating Single Photoelectric encoder
Operating temperature 10-40℃
Display
Display 2.4 inch，320*240 LCDFrequency display 4-digit
Input & Output
Input & output BNCInput & output compatibility
standard TTL/COMS level
Input voltage 0 ~ 5 V
Input high level > 3.6 V
Input low level < 0.4 V
Min load resistance 500 Ω
Interface
RS-232 to USB interfaces. All instrument functions can be controlled and read through USB interfaces
General
Power requirements
Voltage 220 VAC±10%
Frequent 50 Hz ±0.2 Hz
Power < 30 W
Dimensions
Width 206 mm
Depth 150 mm
Height 70 mm
