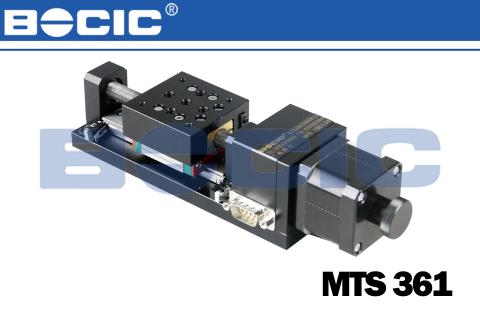

MTS360 series translation stages
1.Actuated with ball screw andlinear guides
2. Small size and high precision
3.Controller usesstandard RS232 interface
4.Zero position photoelectric switch is included. Travel limit switches are located at both ends of the stage for accurate positioning and protection.
- description
- parameters
|
Model |
MTS361 |
MTS362 |
MTS363 |
MTS364 |
|
Travel（mm） |
30 |
50 |
100 |
150 |
|

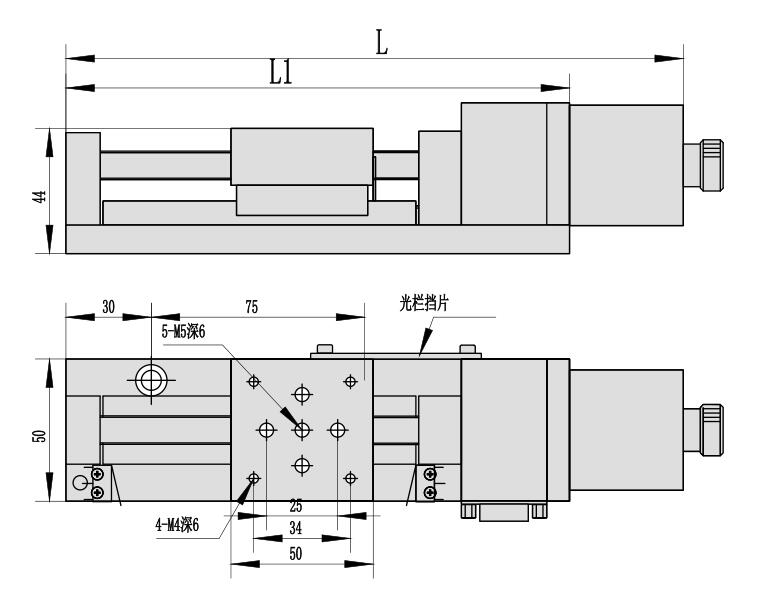

L1 (mm) |
157 |
177 |
227 |
277 |
|
L (mm) |
197 |
217 |
275 |
333 |
|
Table size(mm) |
50×50 |
|||
|
Screw pitch(mm) |
1 |
|||
|
Maximum speed (mm/s) |
10 |
|||
|
Resetting positioning accuracy(mm) |
±0.003 |
|||
|
Loading capacity(kg) |
10 |
10 |
8 |
7 |
