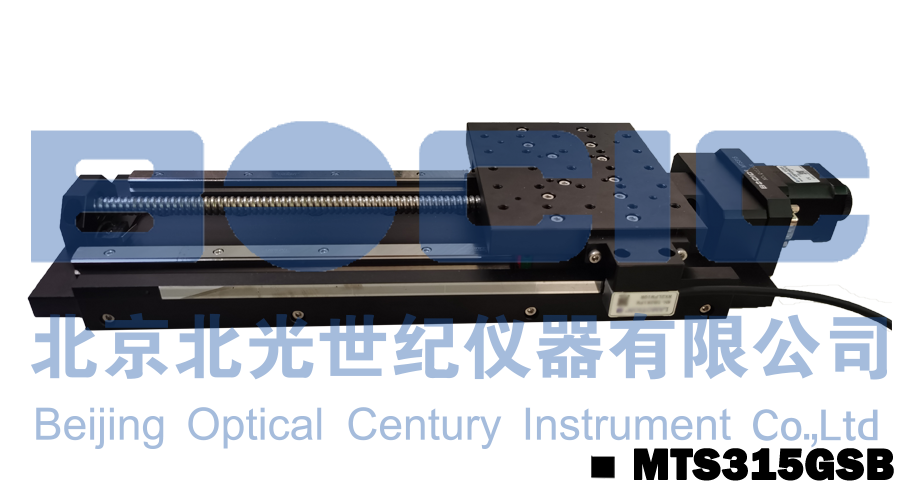

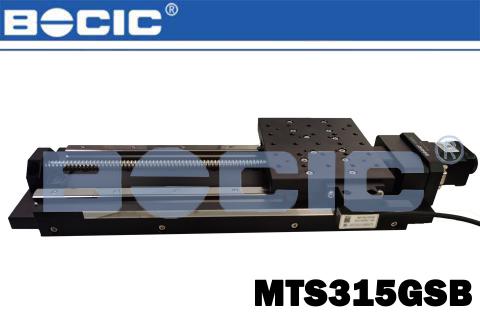

MTS310GSB series motorized precision translation stages
1.Actuated withhigh precisionball screw andlinear guides
2.Highprecision,large bearing capacity
3.The controller uses standard RS232 interface
4.Zero position photoelectric switch is included. Travel limit switches are located at both ends of the stage for accurate positioning and protection.
5.Additional power-off protector is available for vertical operation.
6. Installing domestic grating ruler to achieve closed-loop control
- description
- parameters
|

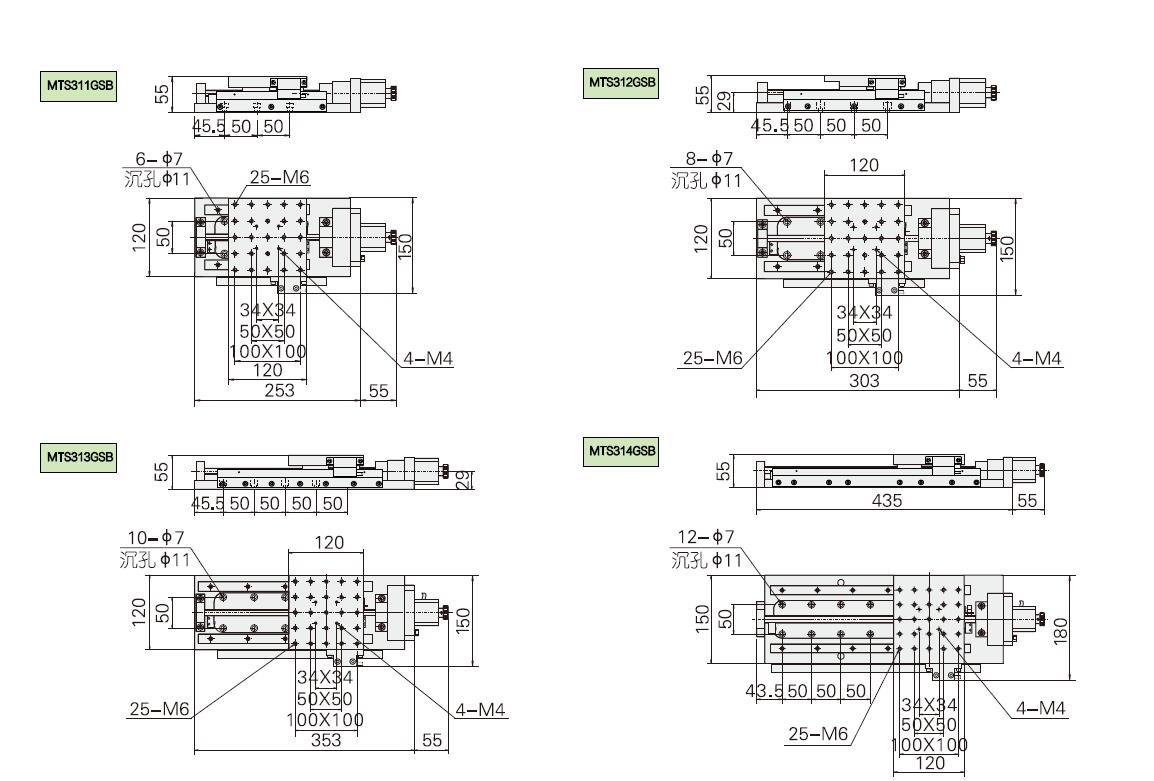

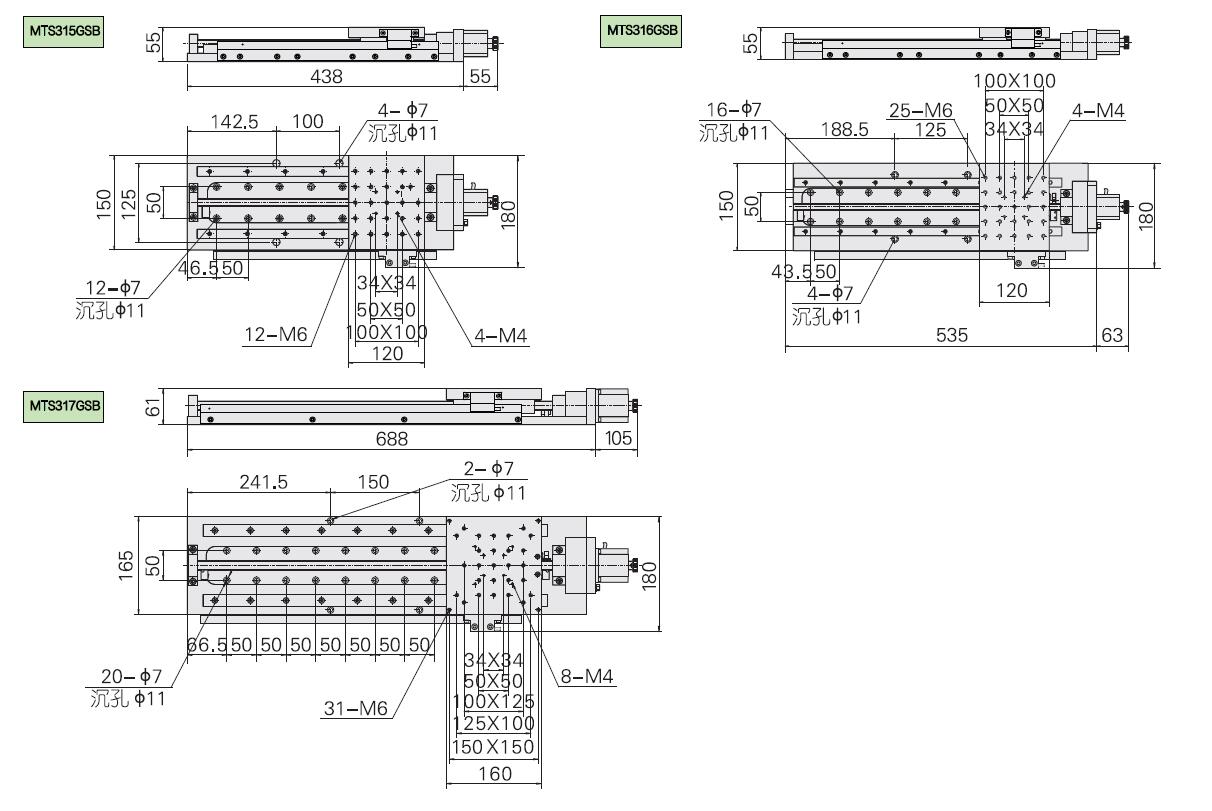

Model |
MTS311 GSB |
MTS312 GSB |
MTS313 GSB |
MTS314 GSB |
MTS315 GSB |
MTS316 GSB |
MTS317 GSB |
|
|
Travel（mm） |
50 |
100 |
150 |
200 |
250 |
300 |
400 |
|
|
Table size (mm） |
120×120 |
120×120 |
120×120 |
150×120 |
150×120 |
150×120 |
165×160 |
|
|
Guides |
Linear guides |
|||||||
|
Screw pitch（mm） |
4 |
5 |
||||||
|
grating scale resolution（mm） |
0.0001 |
|||||||
|
Maximum speed (mm/s)） |
20 |
40 |
50 |
|||||
|
Axial clearance (mm） |
＜0.005 |
|||||||
|
Stepper motor（1.8°） |
42 stepper motor |
56 stepper motor |
||||||
|
Maximum static torque (Ncm) |
40 |
50 |
170 |
|||||
|
Loading capacity(kg) |
20 |
30 |
50 |
|||||
|
Weight（kg） |
3.4 |
3.8 |
4.1 |
5.5 |
5.8 |
6.3 |
11.5 |
|
