- description
- parameters
|
Model |
MVS402 |
MVS404 |
MVS405 |
|
|
Travel(mm) |
100 |
200 |
300 |
|
|

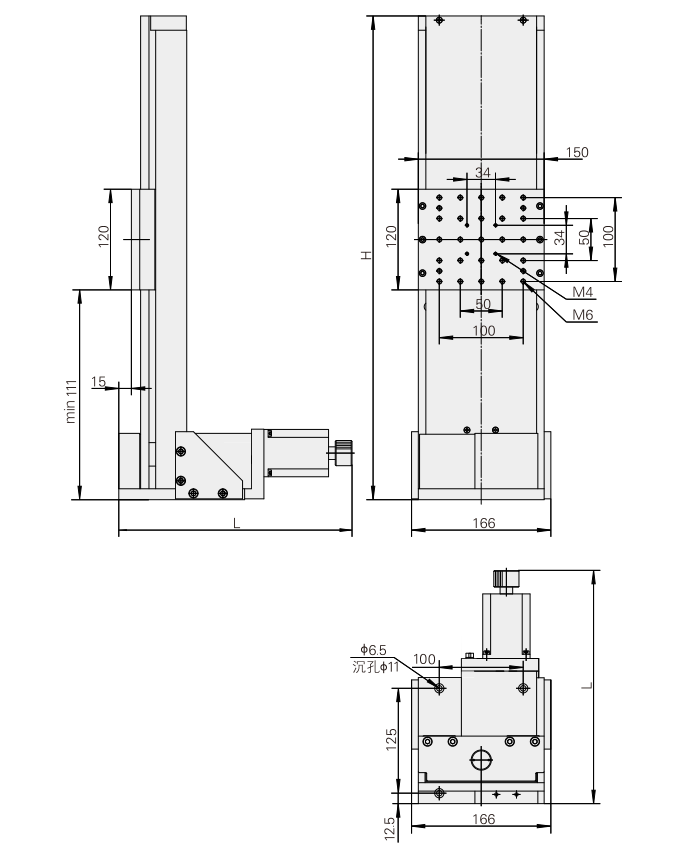

H (mm) |
377 |
477 |
577 |
|
|
L (mm) |
243 |
265 |
265 |
|
|
Table size (mm) |
120×150 |
|||
|
Gear ratio |
20 |
|||
|
Screw pitch(mm) |
5 |
|||
|
Resolution(mm) |
0.00003 |
|||
|
Resetting positioning accuracy (mm) |
±0.003 |
|||
|
Maximum static torque (Ncm) |
100 |
170 |
170 |
|
|
Stepper motor(1.8°) |
56 stepper motor |
|||
|
Loading capacity(kg) |
25 |
|||
