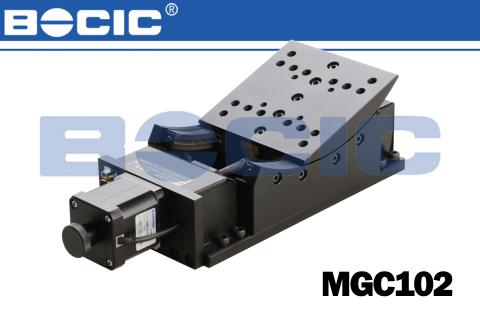

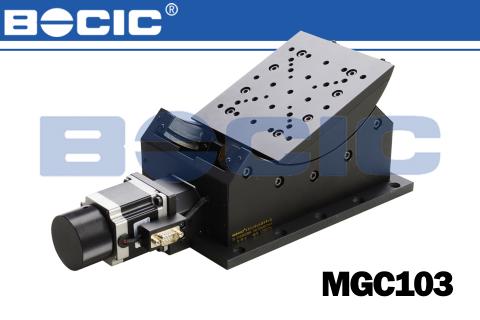

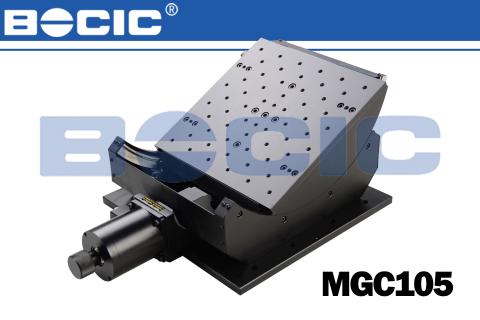

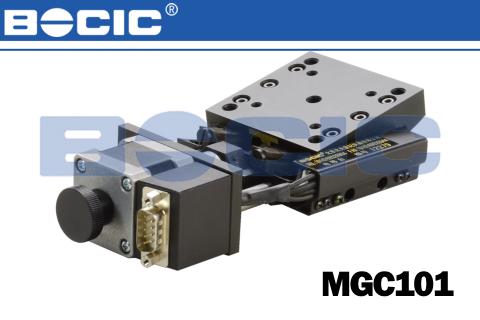

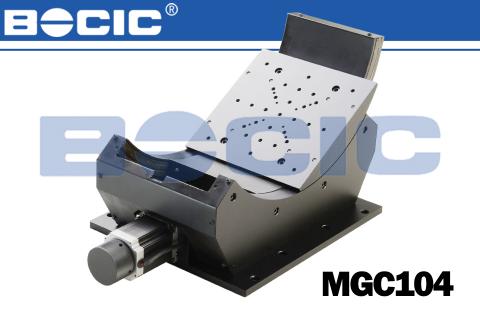

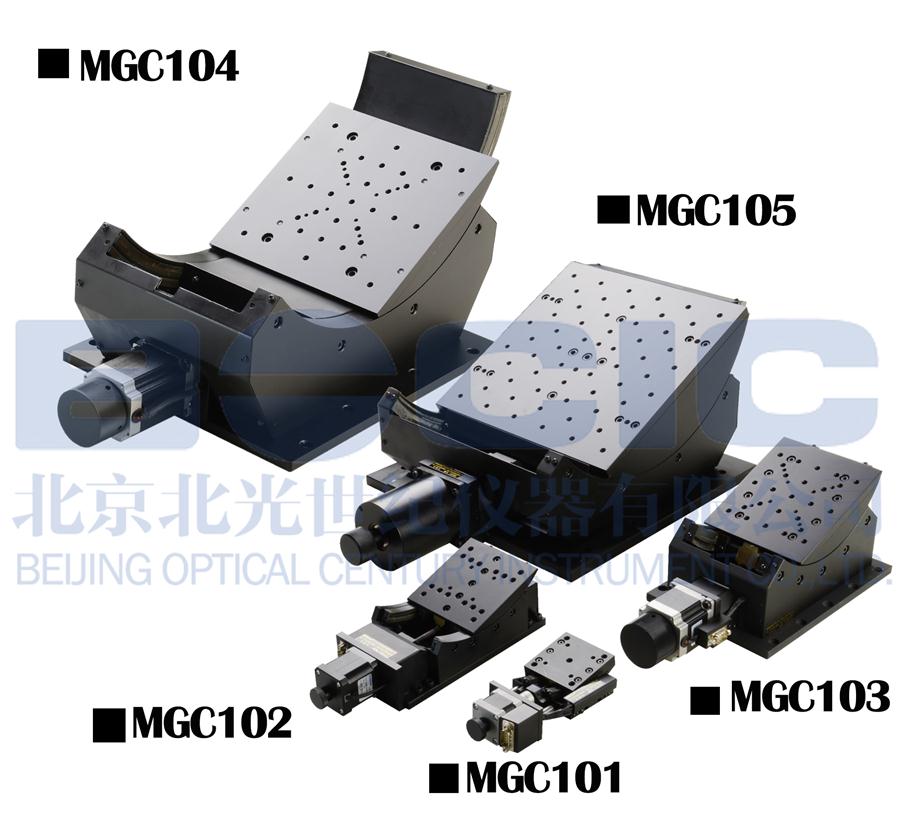

MGC100 series motorized goniomtric cradles stages
1.Annular ball guides
2. The transmission adopts worm and worm gear structures.
3.Maximum incline angle±45°
4.Stacked stage pair provides orthogonalbiaxial rotation about the same pivot point..
5.Encoder can be addedto realizehalf close-loop control.
- description
- parameters
|

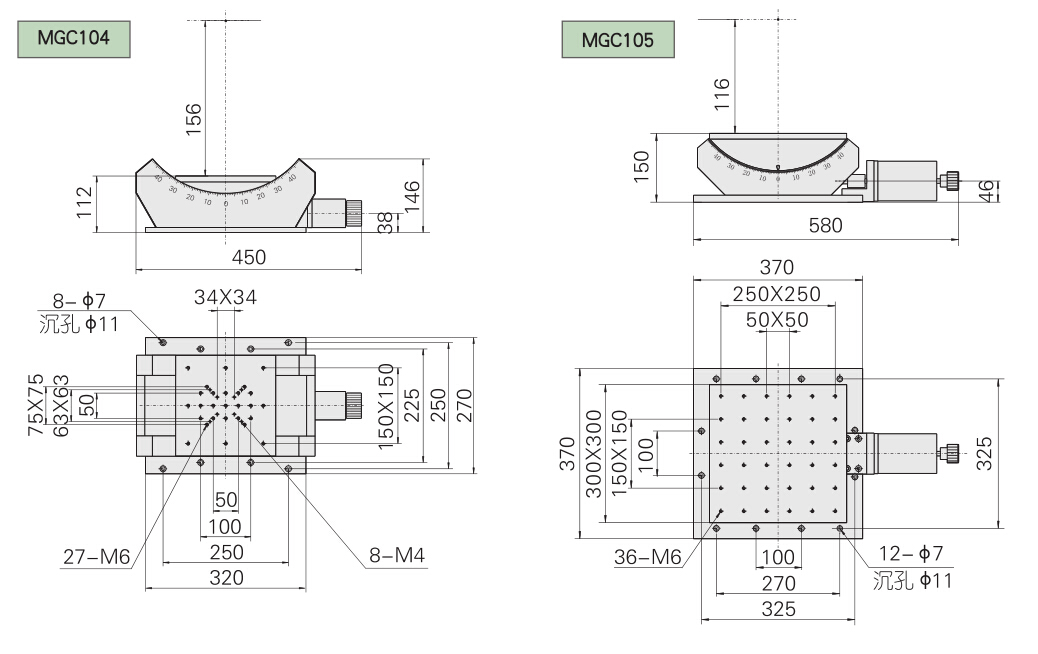

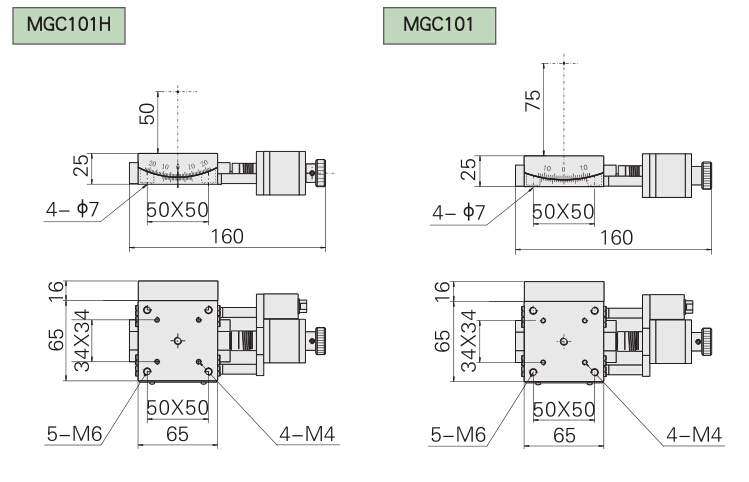

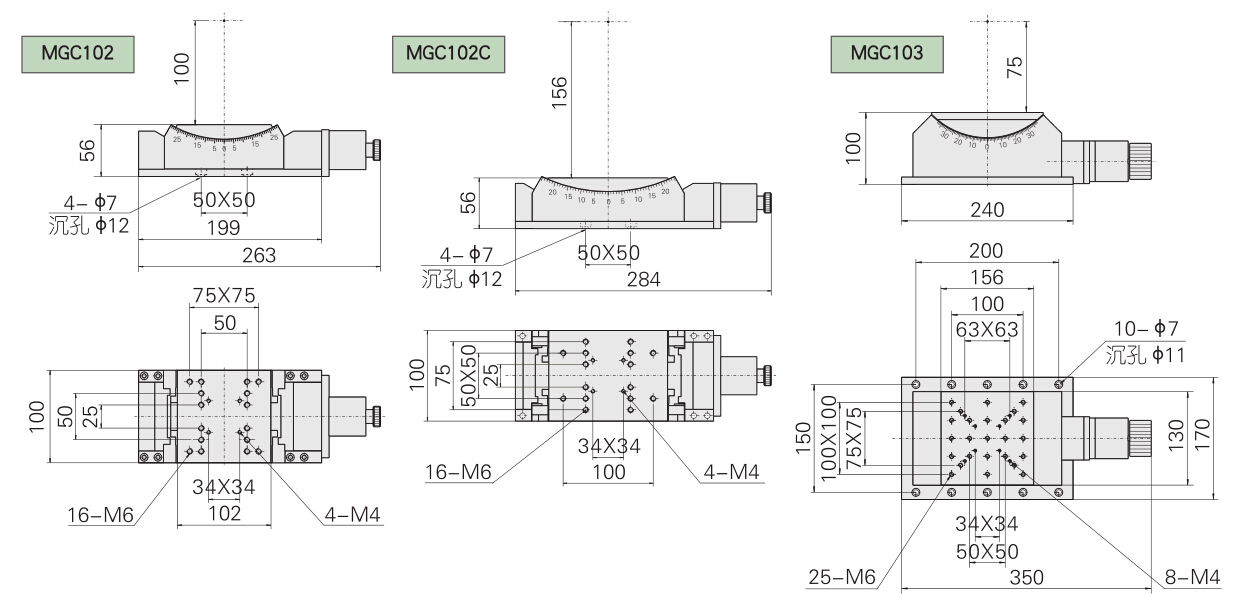

Model |
MGC101H |
MGC101 |
MGC102 |
MGC102C |
MGC103 |
MGC104 |
MGC105 |
|
Table size (mm） |
65×65 |
65×65 |
100×100 |
100×132 |
130×156 |
200×200 |
300×300 |
|
Adjustment angle |
±10° |
±10° |
±20° |
±20° |
±30° |
±45° |
±30° |
|
Resolution（mm） |
0.0001° |
0.0008° |
0.00005° |
0.00004° |
0.0001° |
0.00006° |
0.00005° |
|
Resetting positioning accuracy (mm） |
0.008° |
0.008° |
0.005° |
0.005° |
0.002° |
0.002° |
0.001° |
|
Gear ration |
248 |
348 |
494 |
718 |
270 |
444 |
525 |
|
Stepper motor（1.8°） |
35 stepper motor |
42stepper motor |
56 stepper motor |
86 stepper motor |
|||
|
Loading capacity(kg) |
5 |
5 |
10 |
10 |
15 |
20 |
30 |
|
Weight（kg） |
0.65 |
0.65 |
2.5 |
2.5 |
10.3 |
17 |
36 |
|
Comment |
The product can be used in vacuum environment，but you need to have it made to order. |
||||||
