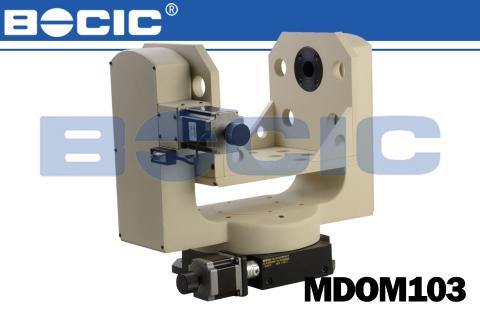

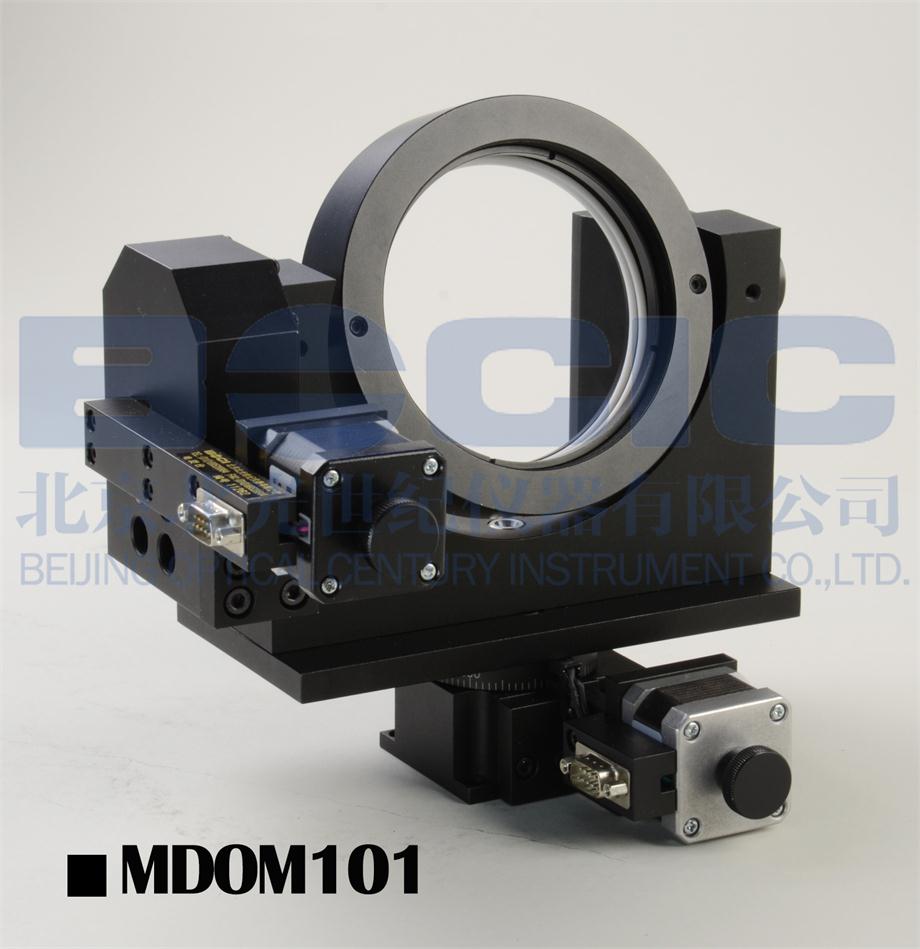

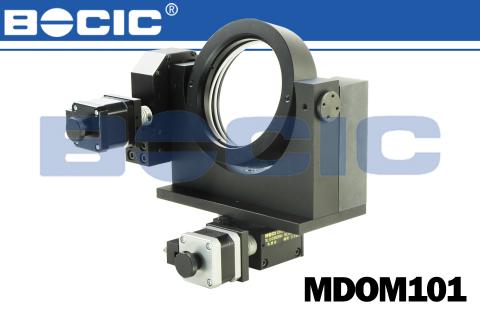

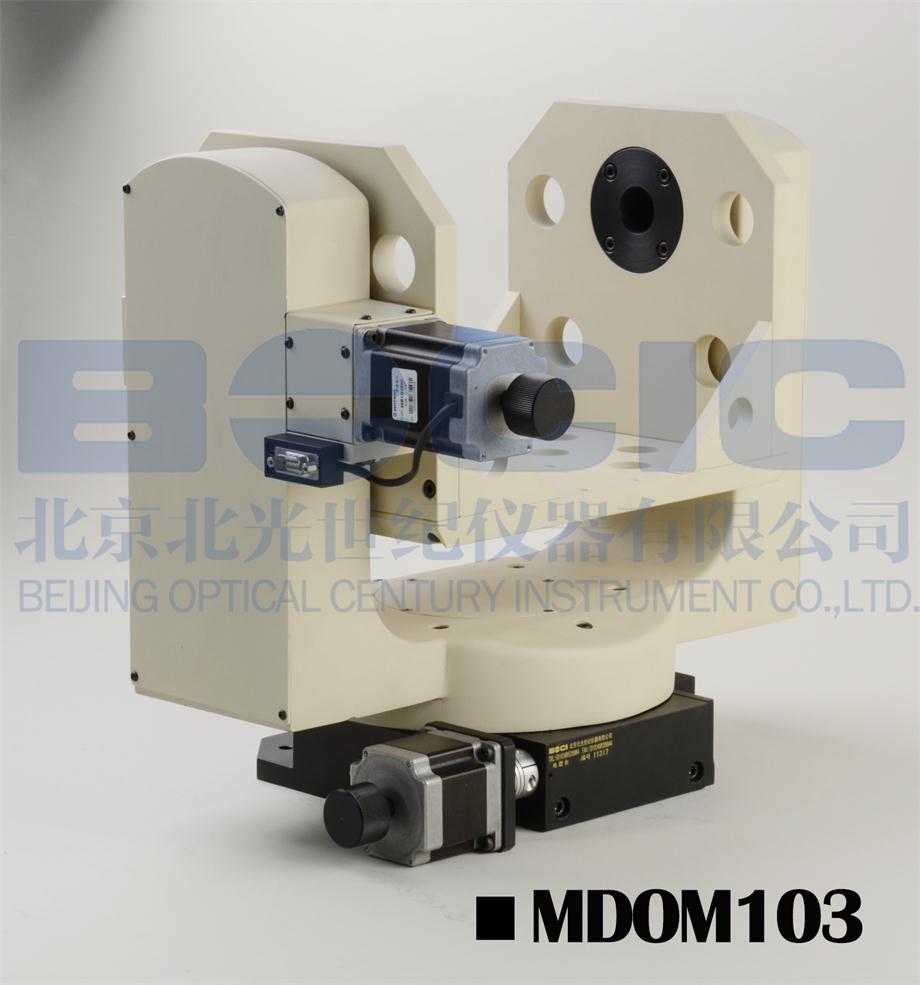

MDOM100 series motorized optical mounts
1..The transmission can adopt worm and worm gear structuresor screw rod structures.
2.The worm and worm gearoption allows adjustment rangeof360°
3.The Screw rod option provides the capability of both coarse and fine adjustment.
4.Orthogonal biaxial rotation about the same pivot point ensures the optical distanceunchanged.
- description

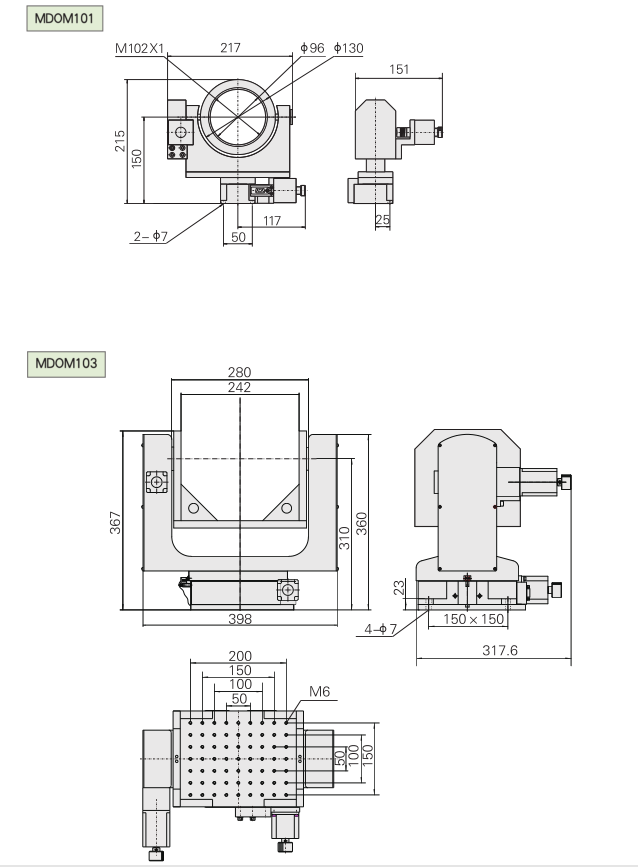

- parameters
|
Model |
MDOM101 |
MDOM103 |
||
|
Applied optic diameter (mm) |
Φ100 |
Φ200 |
||
|
Resolution |
X-axis |
0.000054° |
0.00045° |
|
|
Z-axis |
0.0003° |
0.0002° |
||
|
Resetting positioning accuracy |
0.005° |
0.005° |
||
|
Precision |
- |
- |
||
|
Driving |
worm and worm gear |
worm and worm gear/ screw rod |
||
|
Gear ratio |
X-axis |
150:1 |
80:1 |
|
|
Z-axis |
90:1 |
180:1 |
||
|
Stepper motor |
42 stepper motor |
56 stepper motor |
||
|
Loading capacity(kg) |
5 |
25 |
||
|
Adjustment range |
360° |
360° |
||
|
Maximum speed |
25°/s |
20°/s |
||
|
Weight(kg) |
2.5 |
25 |
||
